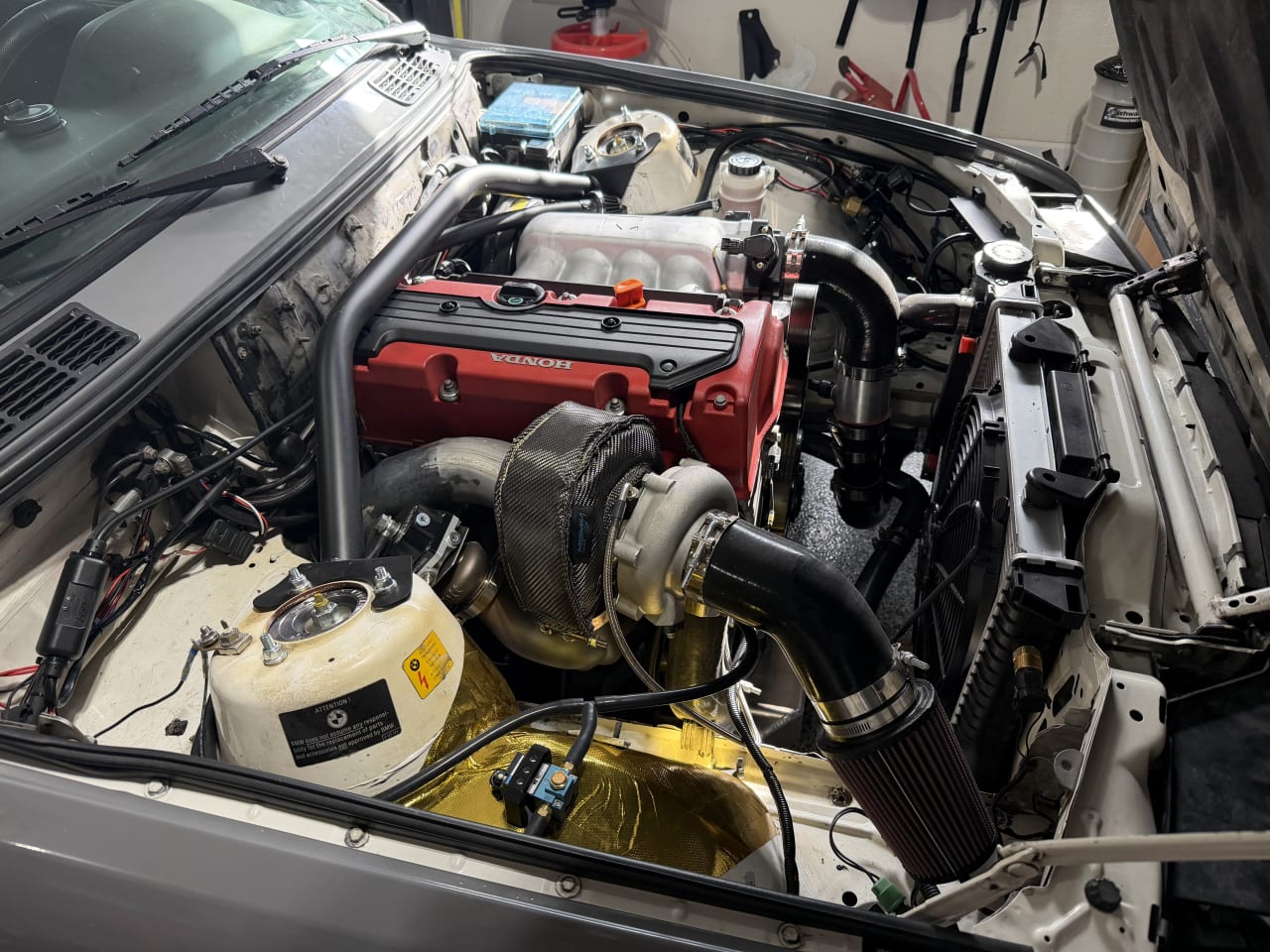

I have owned this car for 10 years. Got tired of the low power of the stock m20b25 and decided to go for the k-swap. This is the first swap i have ever done, and did 100% of it in my garage by myself. Mostly just to see if i could. Been a fun project!

• Horsepower

  ???

• Engine Code

  k24a2

• Weight

  2,300 lbs

• Front Tire Size

  205/50r16

• Rear Tire Size

  205/50r16

• Wheel Size (F/R)

  16x7 / 16x7

• Transmission

  Manual

• Speeds

  5

• Transmission Code

  G260

• Drive Wheels

  Rear

• Fuel Type

  93

• Exterior Color

  grey

• Interior Color

  black

• Trim / Body

  325

• 1.50* VTC Gear
• 2.Upgraded Oil Pump and pick up
• 3.3" Custom exhaust, Vibrant Resonator 1795, Vibrant Muffler 1103
• 4.G25-660 Turbocharger, .72 AR
• 5.Garrett GVW-45 Wastegate, 6 lb springs currently installed
• 6.Garret GVB-50MM Blow off Valve, 6 lb springs currently installed
• 7.Acuity Hall Effect K Series TPS
• 8.Fuellab Fuel Pressure regulator
• 9.OEM LuK clutch Kit - BMW E46 - 5 speed
• 10.Kpower Industries Fuel Rail
• 11.Hondata Kpro v4
• 12.BMW Getrag 260 transmission
• 13.BMW 2.93 LSD (current) or 3.73 LSD
• 14.ARTEC RWD K series Turbo Manifold
• 15.MAC 35A-AAA-DDBA-1BA Bost Controller
• 16.Mishimoto plastic end-tank radiator for 318i
• 17.Spark Plugs BKR9EIX
• 18.Omni power 4 bar map sensor
• 19.Mishimoto Universal intercooler Z-Line, Black 28 x 7.5 x 2.5 inch
• 20.Spal 30100400 16" Straight Blade Low Profile Fan
• 21.Spal 30100399 13" Curved Blade Pusher Fan
• 22.Skunk2 Racing 309-05-0065 Pro Series Black Anodized 74mm Throttle Body for Honda B, H, F-Series
• 23.Grams Performance Injectors- G2-1000-0501
