Acura Integra GSR 1994 H22
Description

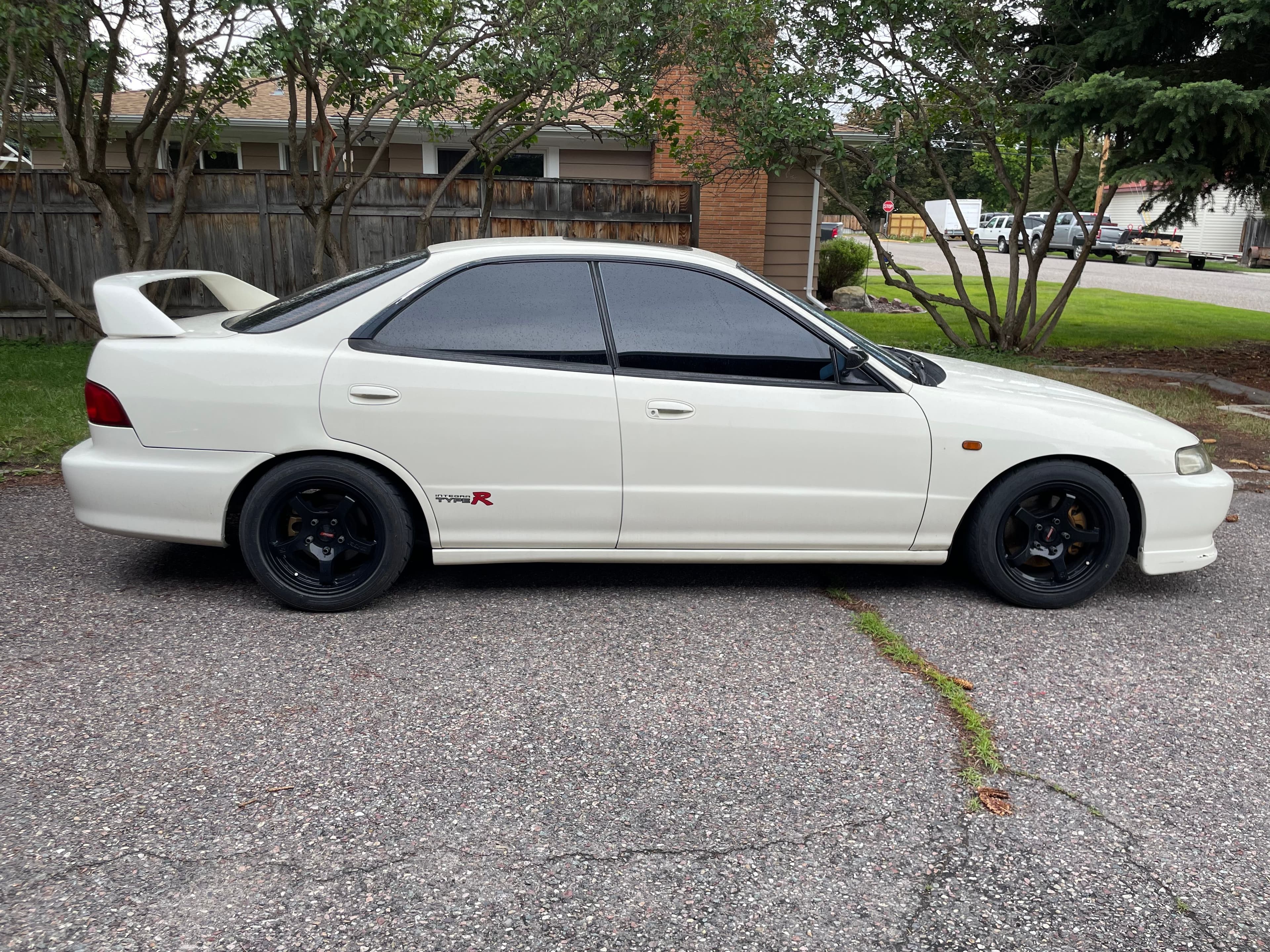

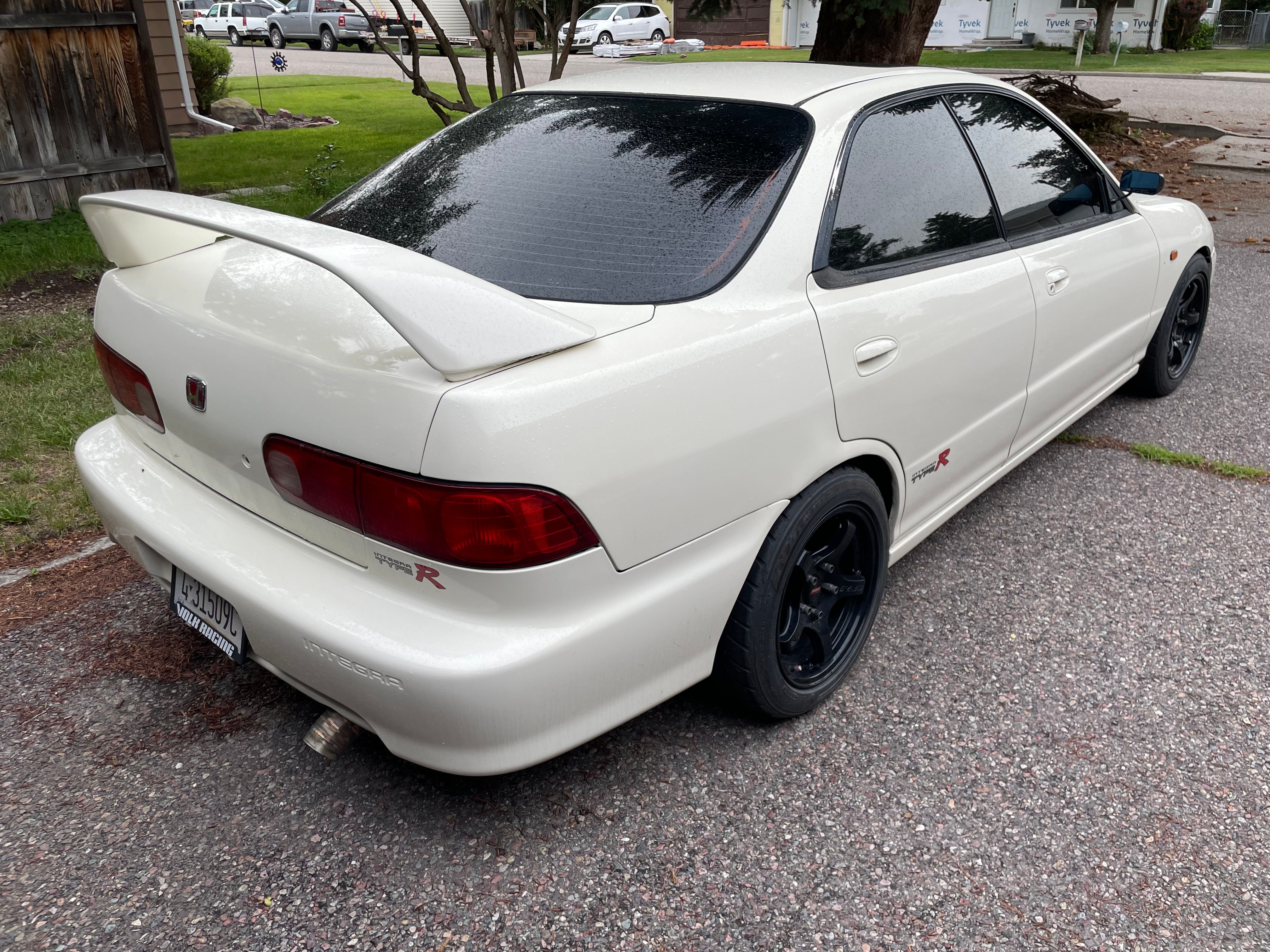

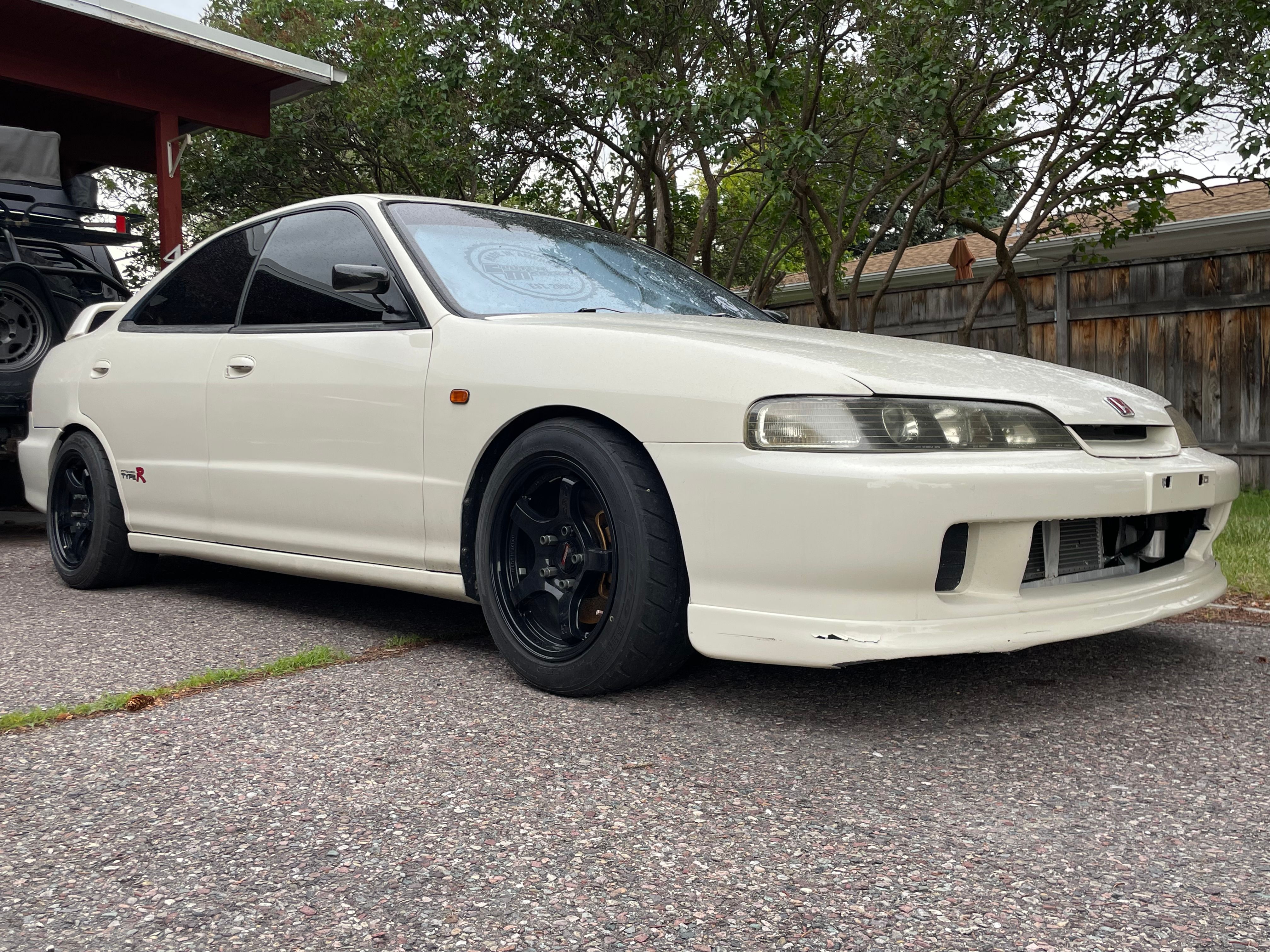

Exterior:
OEM JDM ITR Front End
Painted NH-O Championship White
98+ OEM rear bumper and taillights
OEM DB8 rear wing
OEM side markers
APR formula carbon mirrors with custom 3d printed mounts
CJS Wiring JDM Integra front end light wiring kit

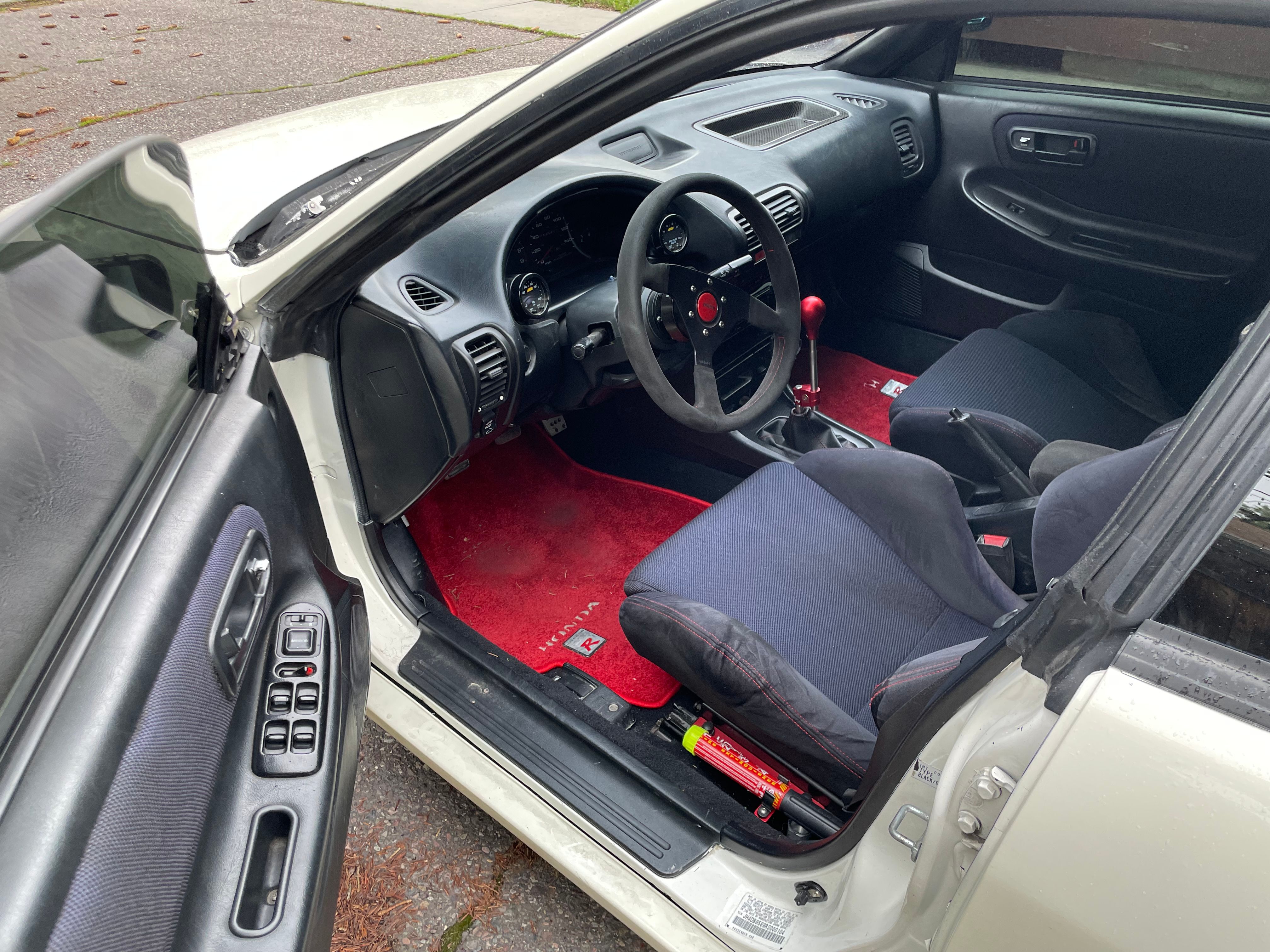

Interior (7/10)
OEM ITR Recaro seats
OEM ITR DB8 rear seats
Momo alcantara steering wheel with NRG quick release
PWJDM carbon fiber airbag delete tray
USDM ITR carbon fiber trim (climate control, shifter surround, ashtray, cig lighter, shift boot)
Hybrid Racing Shift knob
JDI Ghost Key RFID push to start kit
CJS Wiring upgraded main relay kit
Kenwood head unit
Hertz Cento speakers in doors and rear shelf
Custom red floor mats (also has OE DB8 ITR rear floor mats)
New black carpet
Every panel was removed and dyed black as well as headliner
Mugen pedals with custom dead pedal
AEM oil pressure and wideband gauges

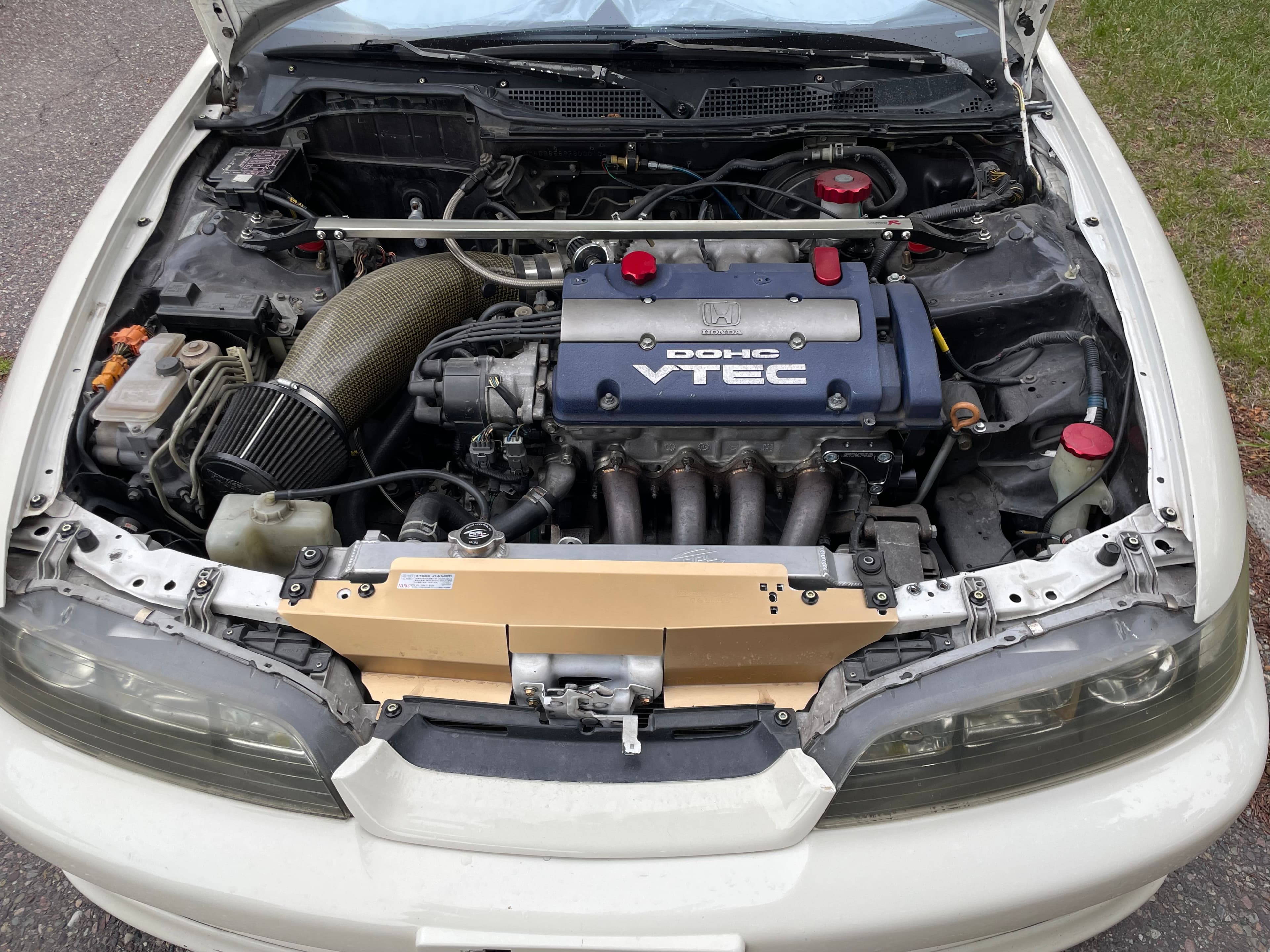

Engine/Transmission (225whp and 154tq)
H22A4 engine out of 5th Gen Prelude w/ JDM H23 blue valve cover
Hondata S300 V3 (bluetooth capable)
QSD H2B conversion/swap kit
Supertech Valvetrain (springs, retainers, valves)
Skunk2 Pro Cams
K Series RBC intake manifold port matched to 70mm throttle body
OEM Acura RDX Injectors (440cc)
Golden Eagle Fuel and fuel pressure regulator
AEM 340LPH Fuel Pump
Fuel pump relay upgrade (wired directly from battery)
Golden Eagle oil filter mount (pressure takeoff for sensor and extra port for turbo feed)
GSR transmission with M Factory LSD (no grinds or issues)
Innovate engine mounts
PRL full size aluminum radiator
SPAL 12” fan (moves a lot of air) and custom radiator shroud
Beatrush radiator cooling plate
Clutch Masters FX350 Short Shift Series clutch kit w/ H2B steel flywheel
Clutch Masters hydraulic release bearing
Clutch Masters flow control valve
Clutch Masters x Wilwood clutch master cylinder kit
PLM H2B header
True Focus Fab 3” header back stainless steel exhaust w/ Vibrant resonator and muffler
KSTuned H2B oil pan w/ baffle
Wickfab H Series timing belt idler pulley
ATI Damper Crank Pulley
Dyno Designs Tyrannosaur Tightener
Hybrid Racing B-Series short shifter kit
Speed Factory heavy duty detent springs
DC5 Creations fender mount battery kit (mounted in front of passenger wheel)
Billet dress up caps for brake master cylinder, oil cap, windshield washer fluid
Custom battery cables and grounding kit
Car has AC compressor and AC condenser installed, just needs lines from firewall to compressor installed. Have DC5 Creations AC tuck kit to go with (tucks AC lines into fender support so AC lines don’t run through engine bay)
Suspension/Chassis
OEM 36MM ITR 5-lug hubs
Prelude axles
Skunk2 ProC Coilovers
OEM ITR front strut bar
No name rear strut bar
ASR subframe brace and rear sway bar combo
BWR rear lower control arms
Rays Gramlights 57CR 15x8 +35 Glossy Black
Nitto NT05s (less than 10,000 miles)
Chase Bays power steering reservoir (no power steering but rack is a powered rack so this just allows fluid to stay in the rack to keep things lubricated)
Additional details
Details
- Make
- Acura
- Model
- Integra
- Year
- 1994
- Sub Model
- GSR
- Milage
- 156000
- Number of owners
- 3
- Location
- Montana
Performance
- Front tire size
- 225/50/16
- Rear tire size
- 225/50/16
- Front wheel size
- 16x8
- Rear wheel size
- 16x8
- HP rating
- 225
- Fuel type
- 91
- Weight
- 2600
Drivetrain
- Engine code
- H22
- Transmission type
- Manual
- Transmission speed
- 5
- Transmission
- Y80
- Driven wheels
- FWD
Style
- Exterior color
- White
- Interior color
- Black
