Subaru WRX STI 2017 EJ25 Motec m150

Description

Pro Comp Long Block starts with the Pro Comp billet CNC insert closed deck Short Block and adds Element Tuning Competition Valve Springs, BC 280 Camshafts, 11mm High Flow Oil Pump, and Element Tuning's Big Valve Head modifications. Manley forged pistons/rings 99.75 bored and honed. Original COBB flex fuel kit, small black box. Fuel pressure sensor 100 psi. (COBB) Shifter Strain gauge see attached pictures. OEM trans case with a sequential shifter conversion and Dog engagement gears.

Additional details

Details

Make
Subaru
Model
WRX STI
Year
2017
Sub Model
Limited
Milage
0
Number of owners
1
Location
CA, USA

Performance

Front tire size
245/40/R18
Rear tire size
245/40/R18
Front wheel size
18 x 8.5
Rear wheel size
18 x 8.5
HP rating
650-700 whp
Fuel type
E85
Weight
4400

Drivetrain

Engine code
EJ25
Transmission type
sequential
Transmission speed
6
Transmission
?
Driven wheels
AWD

Style

Exterior color
White
Interior color
Black

2017 WRX STI Modifications

  • Injector Dynamics 2600-XDS Top Feed Injectors 2600.48.11.WRX.4
  • Process West Intake Manifold Street Version PWIM002
  • ETS Rotated Piping Kit 200-30-ICP-011
  • ETS Performance Front Mount Intercooler 200-30-IC-BK-200-30-IC-026 4 inch
  • ETS Twin Scroll Turbo Kit Precision PT6466 Gen 2 200-30-TK-068
  • Torque Solutions 19mm Phenolic Thermal Intake Spacers TS-SU-478-TGV
  • Fluidampr Subaru EJ Series Steel Internally Balanced Damper 531101
  • COBB Tuning Subaru Air/Oil Separator (AOS) 822615
  • HKS LegaMax Premium Exhaust System 31021-BF001
  • Tial Q 50mm Blow Off Valve Q.RD-Q.11
  • COBB Tuning Subaru 4 Bar MAP Sensor Kit A12700
  • DPI Fuel Rails, Subaru EJ 20-0499
  • Fuel Pulse Damper 20-0777 FPD-XR
  • MPR, Multi-Port Regulator 20-0100-01
  • Dual Walbro HELLCAT 525LPH F90000285 Fuel Pump.
  • Speed Density Wiring Kit AEM Sensor #30-2010
  • AEM Wideband X-Line Series with Gauge with iWire PP-SUWB002-1
  • Stage 2.5 Boost Cooler 2.5L Water-Methanol Injection Kit SNO-2110-BRD
  • ARP custom age 625 head studs ARP-l19-s11
  • Carillo pro H beam forged connecting rods Carillo Pro-H 3/4 WMC
  • Piston compression 9.8:1
  • Closed deck
  • BC 280 Camshafts
  • Big valve head modification

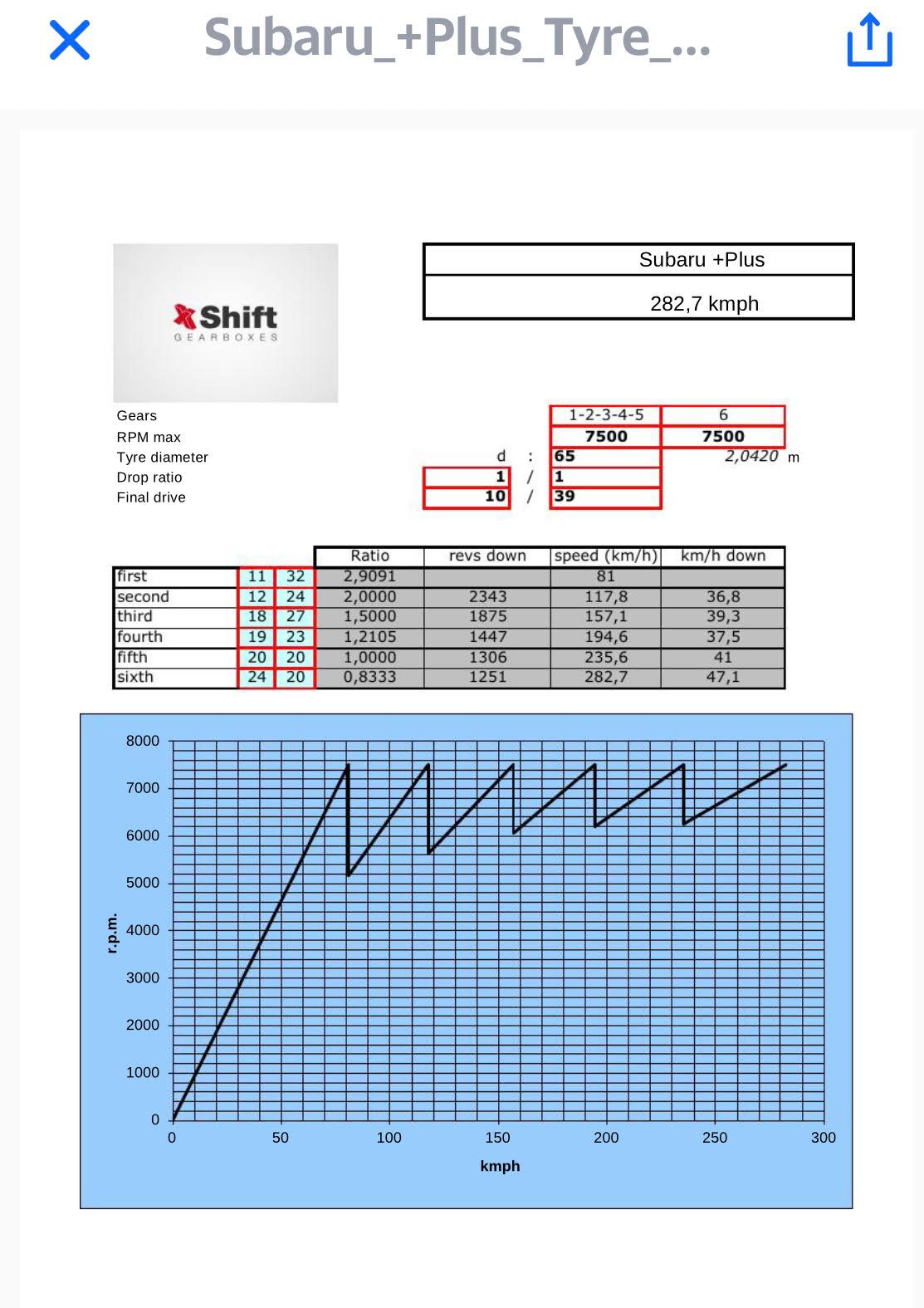

  • Xshift sequential STI 6 speed. Ratio 1) 2.90 2) 2.00 3) 1.50 4) 1.21 5) 1.00 6) 0.83 Final drive 10/39
  • Grim speed Electronic Boost Control Solenoid 3-Port 057007
  • Two Precision GEN2 40mm Wastegate
  • Cobb flex fuel kit (5-pin)
  • 315650 – COBB Fuel Pressure Sensor Kit (5-pin)
